- Part #2, Part #6 in diagram.

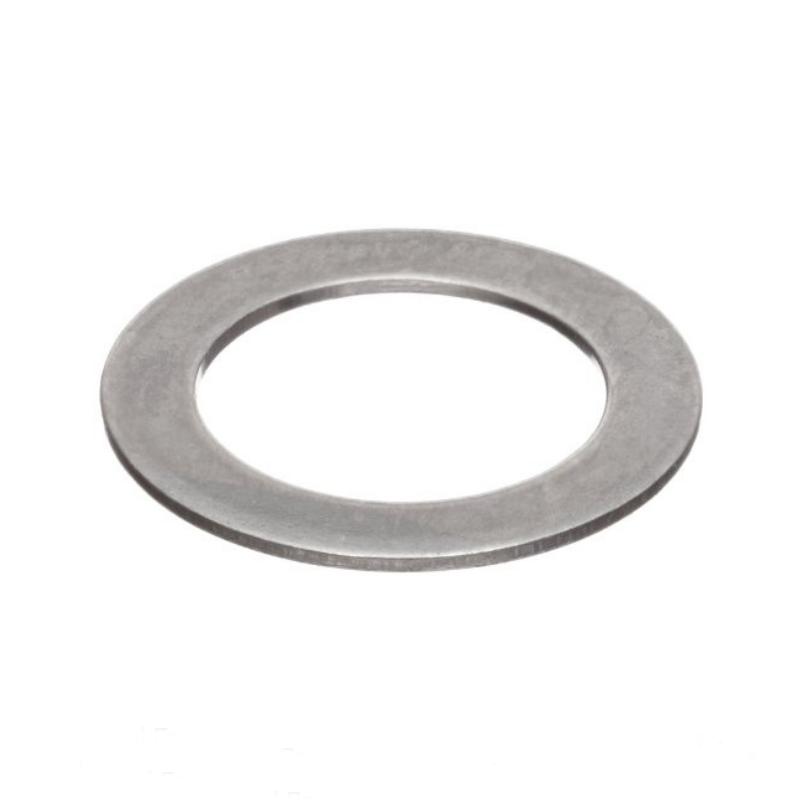

- Clutch hub spacer, as well as internal spacer for Hilliard Inferno Flame, Fire clutches.
- NOT the large spacer utilize to primarily adjust clutch overhang/offset relative to the end of the crankshaft.
- However, these steel washers are excellent shims to 'fine tune' your clutches fitment to the crankshaft or application.
- For Briggs 206 applications, often 1-2 spacers are required in addition to large spacer.
- Having at least one in the position illustrated by Part #6 on the diagram is an excellent way to minimize some of the 'clang' the internal grease cover makes in the clutch during use.
- Available as singular washer only, with no additional hardware.
