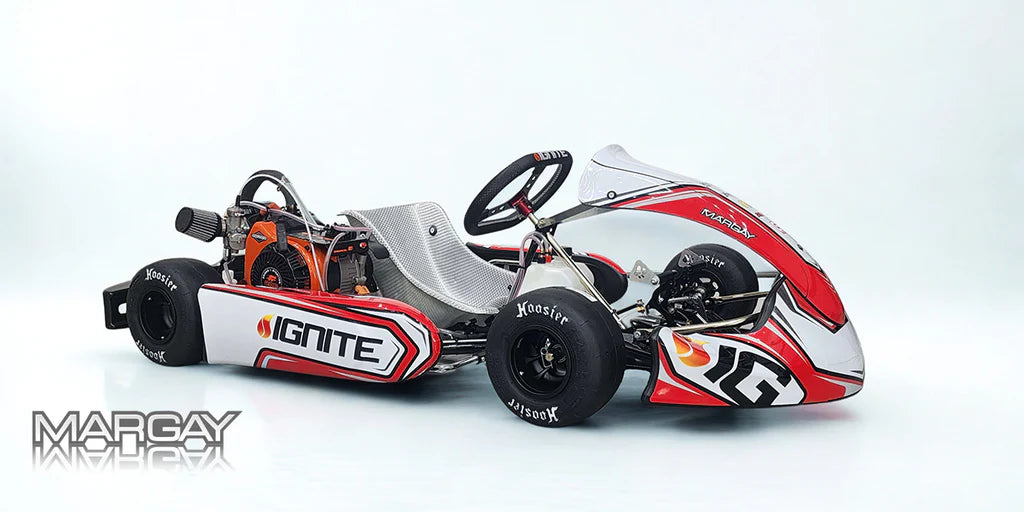

The Ignite K2 is a professionally manufactured kart chassis used in both spec and open level kart racing. Made right in St. Louis, Missouri, the Ignite K2 is responsible for significant growth throughout the midwest by way of the Ignite program. New racer, experienced karter, spec racing or open racing – the Ignite K2 is the perfect kart for you!
Available as a rolling chassis, a complete kit, or as a fully assembled and ready to race kart, the Ignite K2 206 is a perfect option for drivers looking to enter the 206 class on an easy to drive and fast kart package.
Fully adjustable out of the box, the Ignite K2 works great in all track conditions!
This is the kart you need to race in the Ignite Racing Series!
Options
- Rolling chassis
- Kit package, rolling chassis, decal kit, engine, tires, seat (uninstalled)
- Race ready, complete with Briggs LO206 and Hoosier R80tires (installed)
Standard Equipment/Features
Frame: 1.25″ (28mm) multi-alloy
Wheelbase: 40.00″
Kingpin Inclination: 10°
Caster: 15°, adjustable
Ackerman: Adjustable
Front Ride Height: 6 position, adjustable
Rear Ride Height: 2 position, adjustable
Components

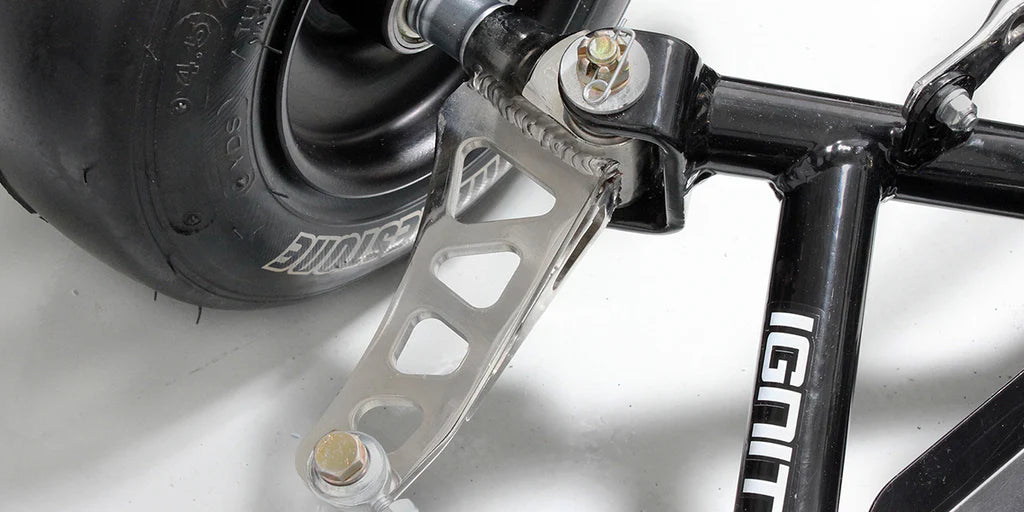

Spindles: 17mm, heat treated, billet
Rear Axle: 30mm

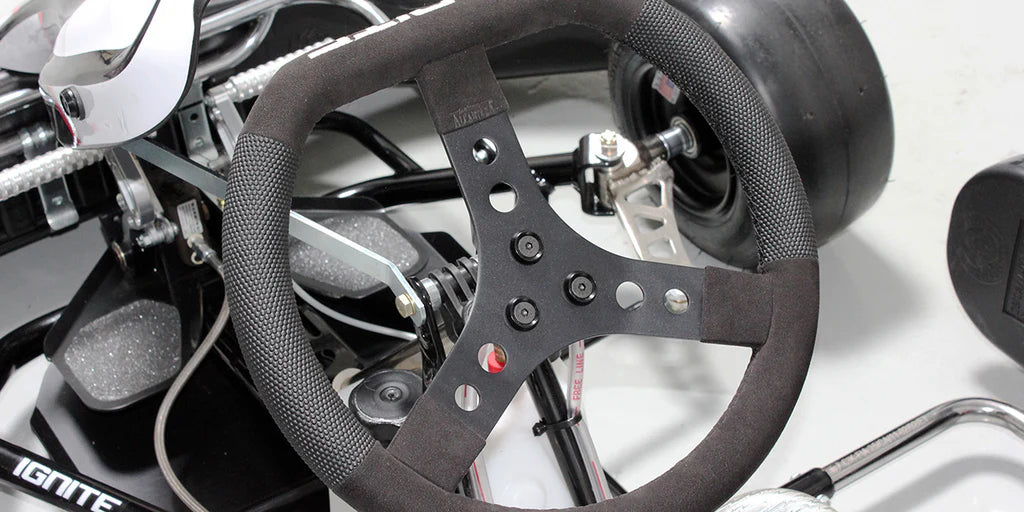

Steering Wheel: KG Ignite 3-spoke, flat top
Steering Hub: 2 position, flat mount
Steering Shaft: 19″ x 3/4″, adjustable ackerman

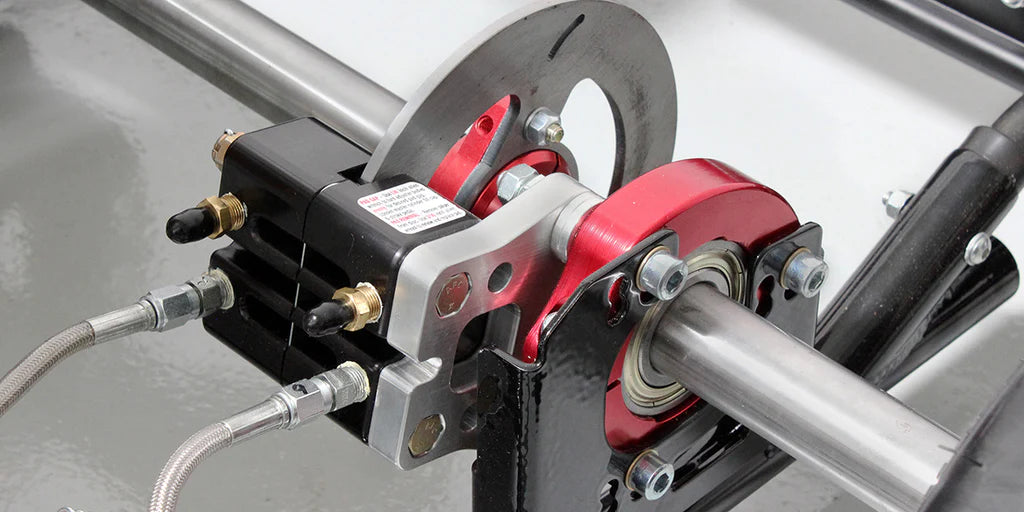

Brakes

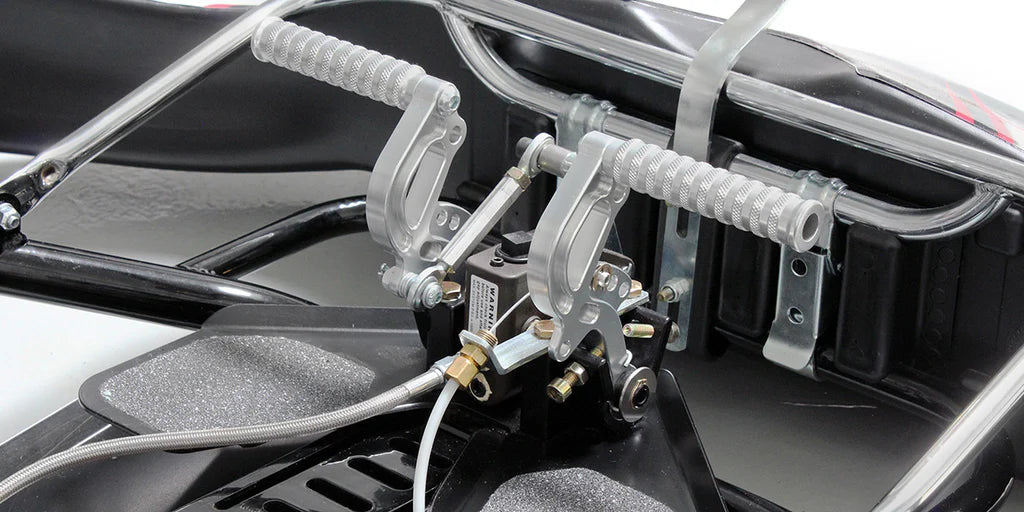

Master Cylinder: MCP Billet
Caliper: MCP Billet, 2 piston, pad adjusters
Brake Lines: Braided, stainless brake lines

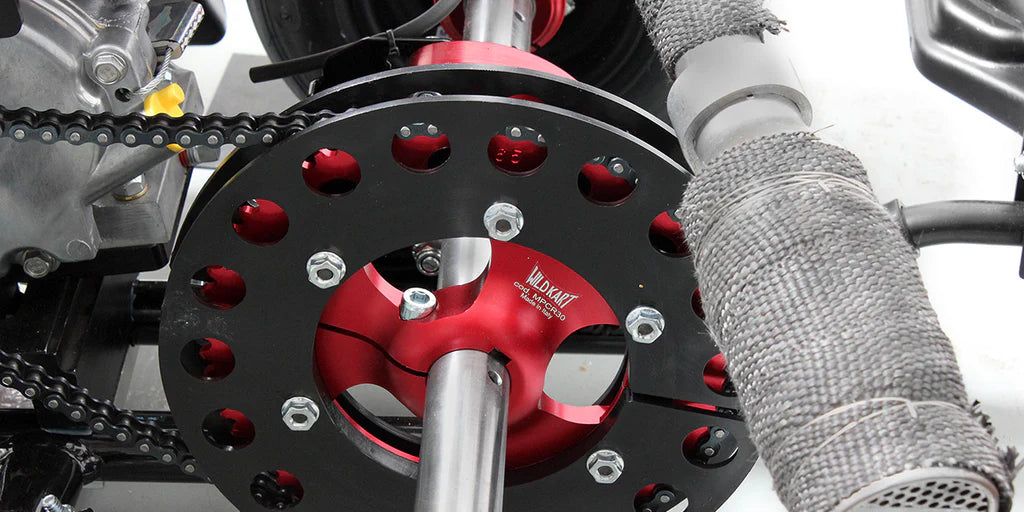

Rotor: 6" slotted rotor
Bodywork
Front Bumper: KG MK20, adjustable height mounting
Fairing: KG MK20
Side Pods: KG MK20
Rear Bumper: KG Tris, adjustable width
Wheels & Tires
Front Wheels: TruSpeed Magnesium, 5″ x 130mm, 17mm mount
Rear Wheels: TruSpeed Magnesium, 5″ x 130mm, euro mount
Tires: Hoosier R80, 4.5
*** Tires & wheels will be adjustable based on class
Seat

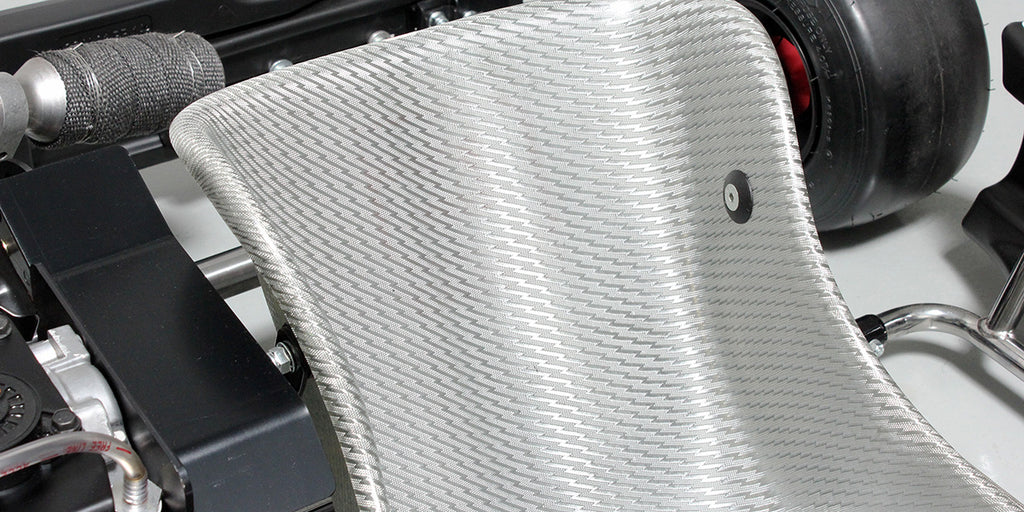

Seat: GSeat ES1 flat bottom, fiberglass
Lower Mounts: Fixed
Upper Mounts: Bolt-on, adjustable
Engine

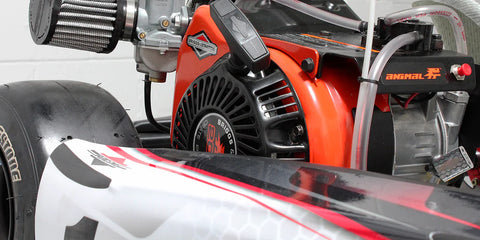

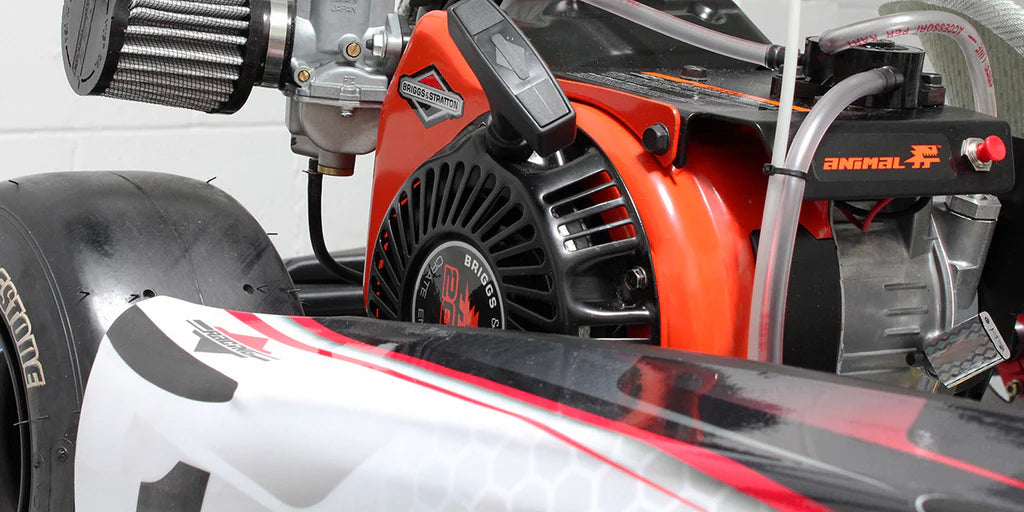

Engine: Briggs 206cc, air cooled 4-cycle
Mount: Odenthal 4-Cycle Mount International adjustable. 8 degree
Clutch: Hilliard Flame with sprocket
Chain: EK #35 pitch, 40″ length
Exhaust: RLV #5507 header, #4104 silencer
Air Filter: Briggs #555729 Green air filter
