DR Vertical Spindle Spacers

  • Sale
  • Regular price $4.74
  • Will not ship until
Shipping calculated at checkout.


Vertical Spacers for DR Kart front spindles. Ideal for adjusting ride height on your DR racing go kart. Also will fit CRG, Zanardi, and other CRG-derived chassis or steering systems.

**NOTE** Okay, deep breath! This is going to get technical. Typically, on most DR or CRG front spindles the spacers are quite specific. If you order the wrong ones, you will have excessive play or incorrect ride-height in your front spindle system!

  • Hardened aluminum construction.
  • Chamfered and burnished finish for durability.
  • Available for 8mm or 10mm king pin sizes.
  • Typically, a standard DR front spindle spacing setup consists of:

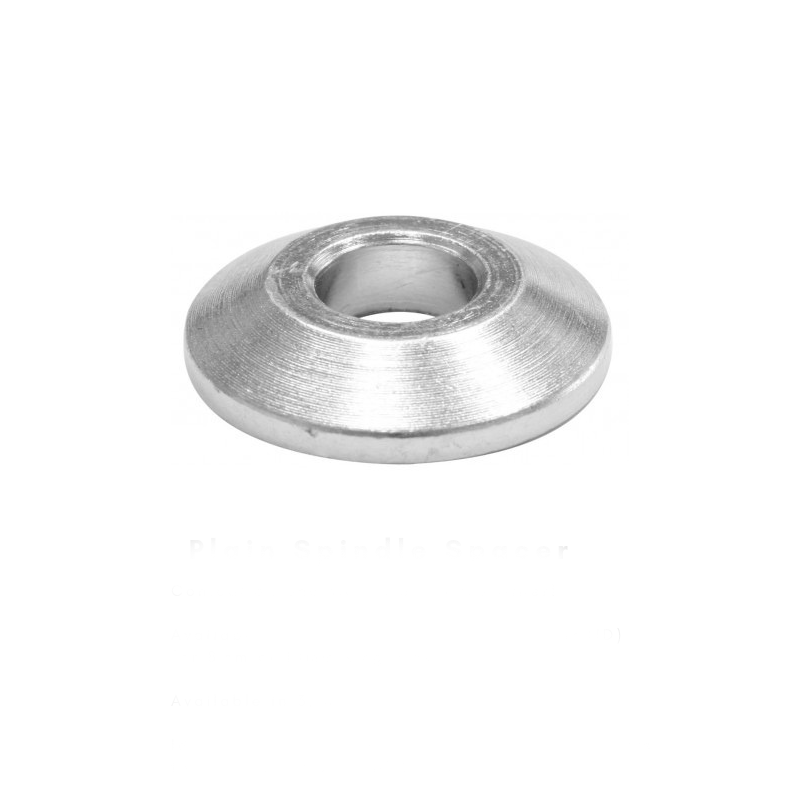

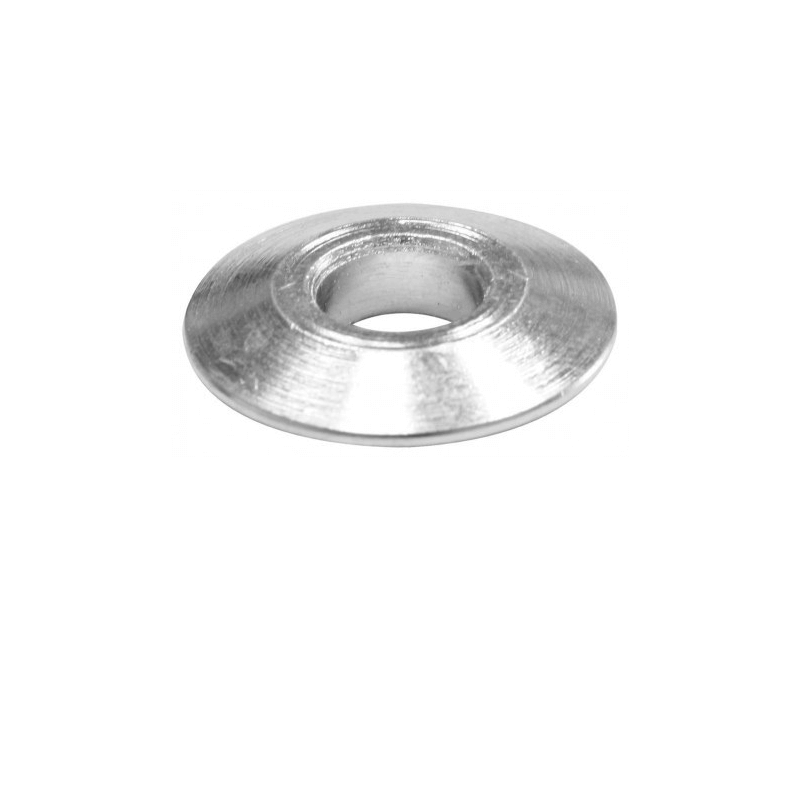

    • (2) conical washers: These washers are chamfered on both sides of the washer, and the angle allows for easy insertion along the king pin when adjusting ride height.
      • These washers come in 3mm, 4mm, or 6 height depending on the era of your spindle system. Point Karting encourages you to check the height of what you need prior to ordering!
    • (1) "Plain" washer: This washer is special! It has one chamfered face, and one flat face. Be careful to always place this washer with the flat face facing towards one of the eccentrics, either top or bottom.
      • These washers come in 3mm, 4mm, or 6 height depending on the era of your spindle system. Point Karting encourages you to check the height of what you need prior to ordering!
  • Each spacer is sold separately.
