Douglas Spun Aluminum Wheels (Metric)

  • Sale
  • Regular price $65.00
  • Will not ship until
Tax included. Shipping calculated at checkout.

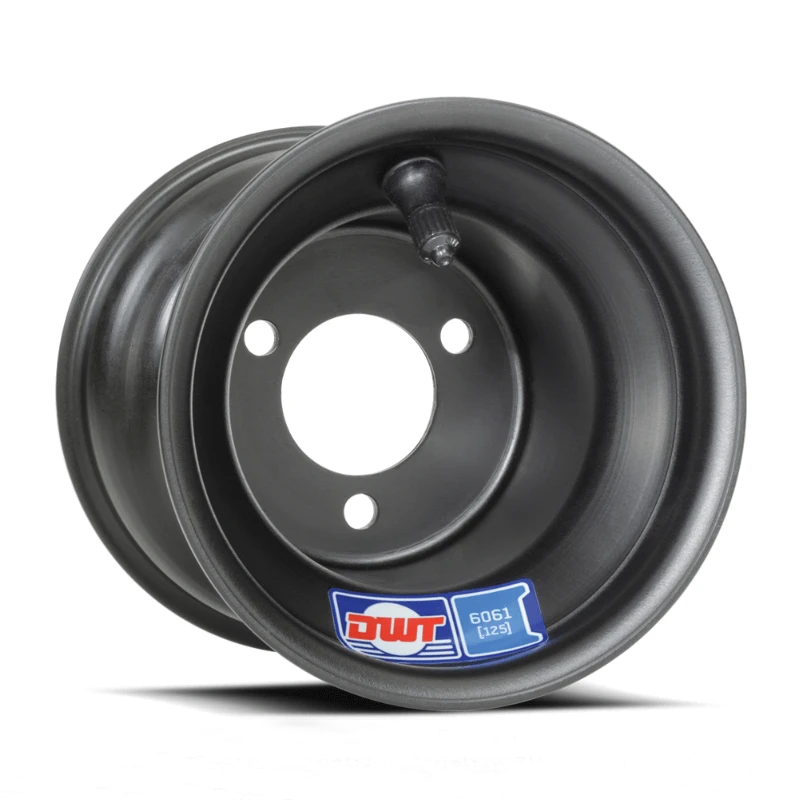

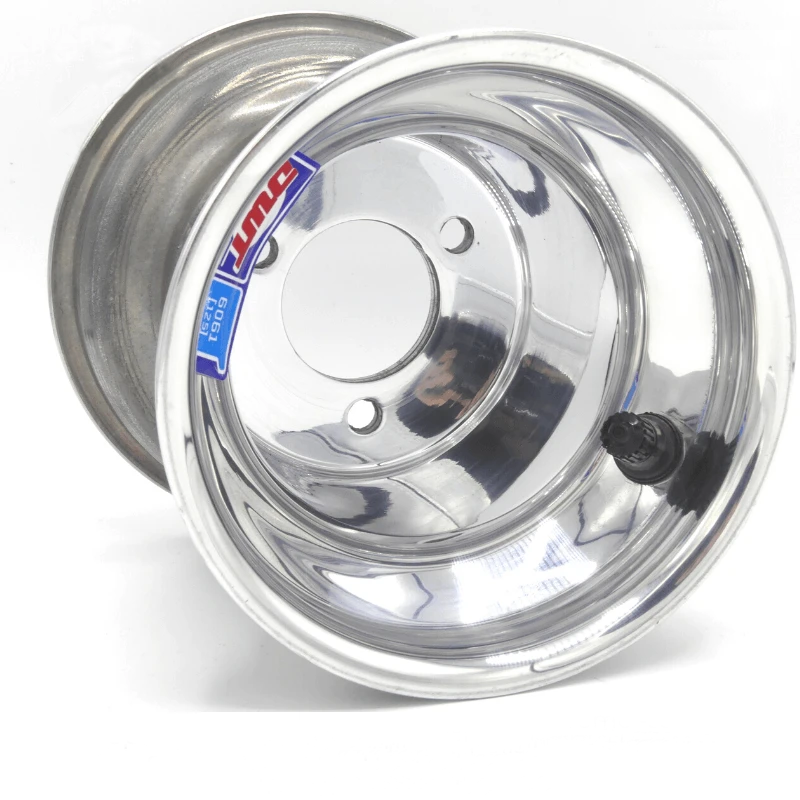

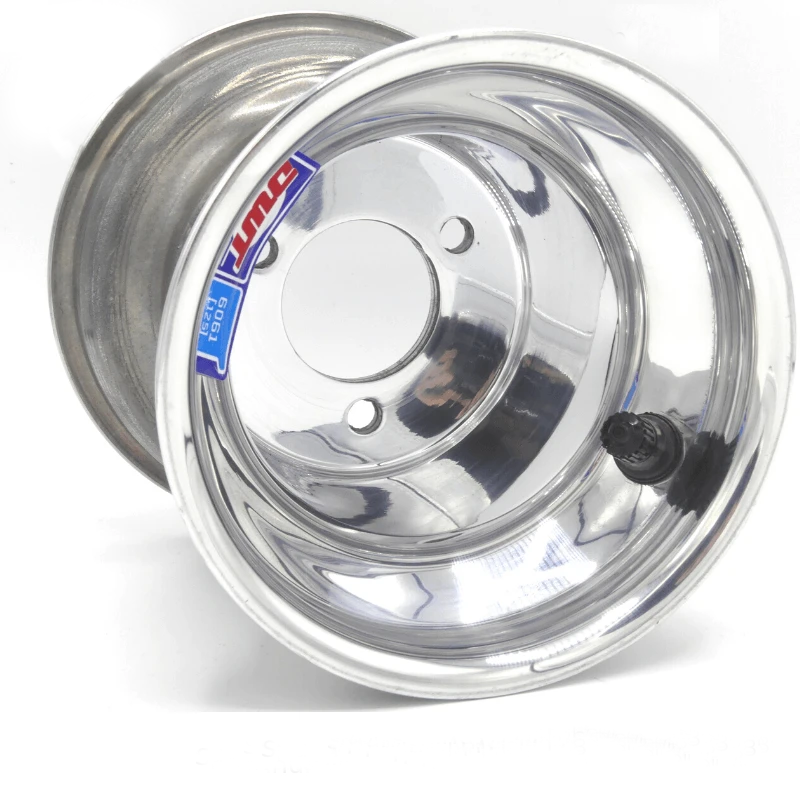

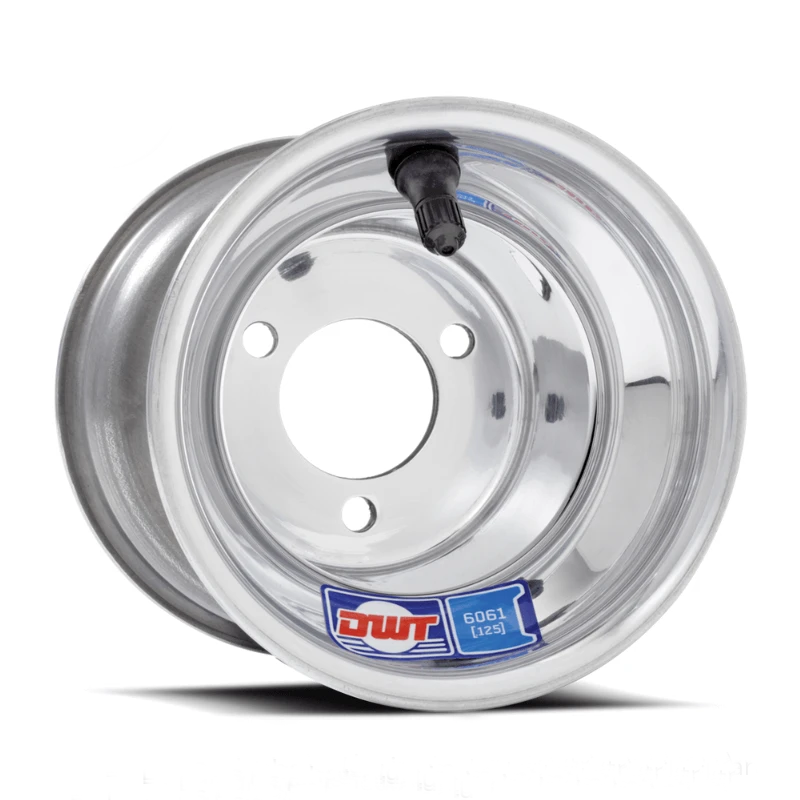

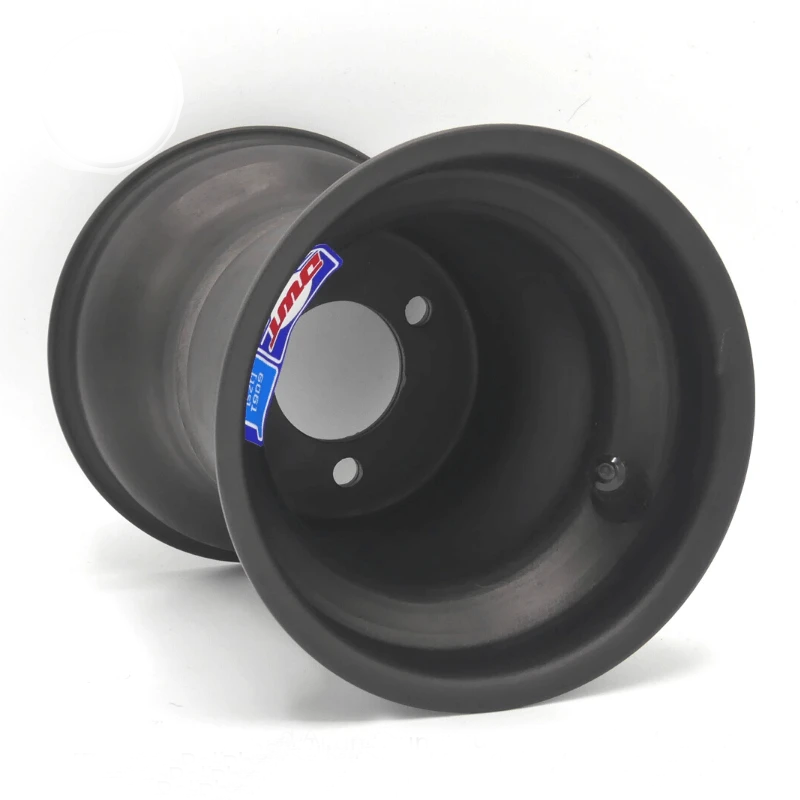

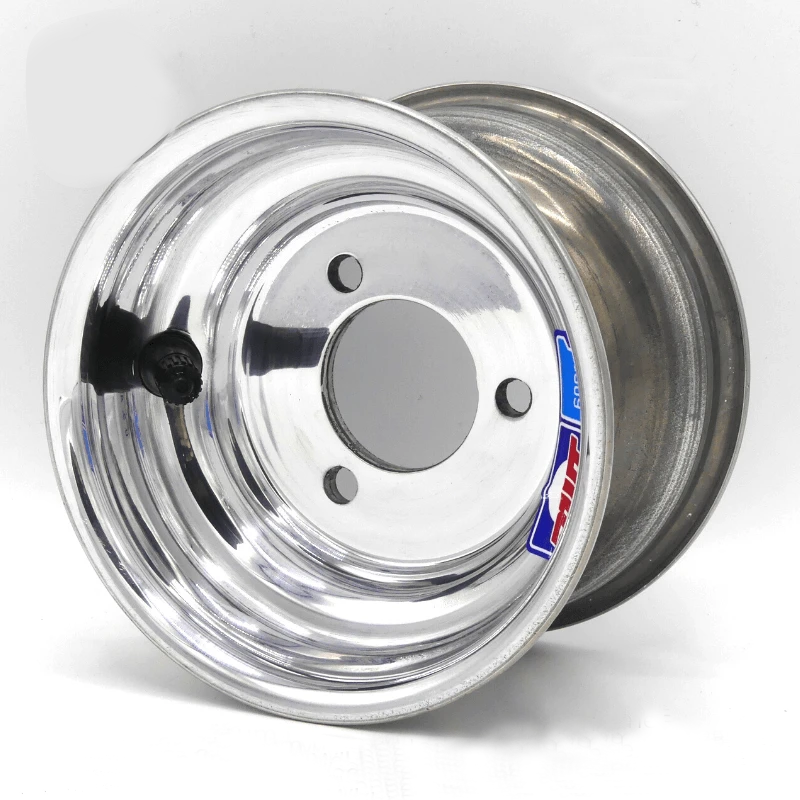

Douglas Spun Aluminum Kart Wheels with Metric Bolt Pattern. These kart wheels are intended for the front and rear of racing go karts, with a variety of rim widths available. These rims will fit all 5" racing kart tires. All wheels are available in polished chrome or black satin finish.

Overview



An industry leader for kart wheels for decades, Douglas has produced spun aluminum kart wheels for a long time. Before there were exotic materials such as magnesium alloys were used, there were spun aluminum wheels - they were the industry standard! Lightweight and straight-forward, these wheels provide a low-grip option for your kart at a fraction of the cost of high-dollar magnesium wheels.

Each Wheel can be sold separately. Typically racers will need (2) rims to fit to their kart. In the case of a Kid Kart or Cadet / Mini kart, a set of (4) rims of the same dimension is needed.

Wheel Dimensions

This series of wheels utilizes a 3-hole, European OEM type bolt pattern: 3/58 - (3-holes, centered on a 58.0mm diameter from the center axis of the wheel. Each bolt hole is 8mm in size).

The overall width of the rim varies upon the width chosen from our drop-down menu. Here, wheels are available from 3 1/4" up to 7 3/4" widths.

The overall rim diameter is 5.0" - this fits standard 5" kart racing tires. This is the most common size of kart rim used in sprint-kart racing.

For a representation of what wheel bolt pattern and dimensions may mean, consult the diagram below:

  • Wheel-Bolt-Pattern-Offset-Example
