CRG KT 5 with KA 100 - Race Ready

  • Sale
  • Regular price $9,300.00
Shipping calculated at checkout.

CRT KT 5 with IAME KA 100 Engine, Race Ready! This kart and chassis combination is ready to perform for you with immaculate build quality and performance in mind. This race ready kart is ideal for racers that want to compete in the IAME KA 100 category, be it senior or junior.

Point Karting now is offering this kart built to your specifications, race ready!

Chassis Overview

Newly revamped and updated, the KT 5 is ideal for direct drive and single speed categories, with a newly updated frontal crossbar with 32mm tubing. With the Sniper SA1 alignment system as standard, adjusting chassis settings on the KT 5 is made simple and customize-able to the driver's preference. Fully-adjustable hubs, bearings, and braking system allow for fine-tuning of the karts handling and performance.

The KT 5 comes standard with magnesium components, with the bearing cassettes, sprocket, brake, and wheel hubs upgraded to lightweight gold magnesium for added visual appeal and performance. A lightweight and pliable IMAF F6 fiberglass seat completes the chassis order, available in various sizes.

For the 100cc racer, additional components including the exhaust and air box support cradles are also available for the chassis.


Chassis Tubing: 30 / 32mm

Intended Application: 100cc or 125cc

Steering System: Shaft & Tie Rod (VEN 11)

Braking System: Braking System (VEN 11) Hydraulic, Single Rear Caliper

Wheels: Douglas Low-Volume Magnesium w/Beadlocks (130mm Front, 210mm Rear)

Torsion Bar: Front, Rear Torsion Bars included

Axle: 50mm OD x 1020mm Width CRG M20 (Med / Soft)

Race Ready!

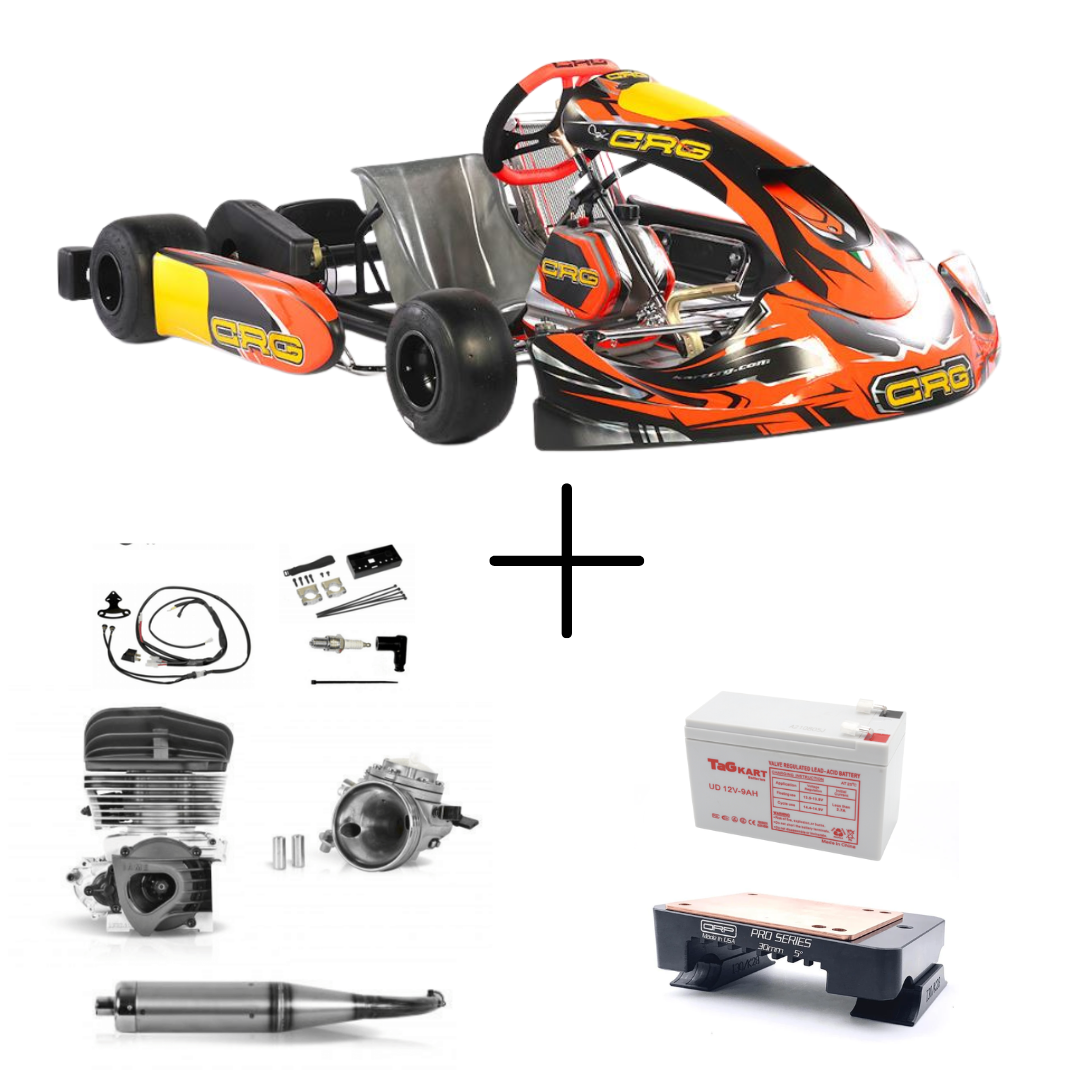

When we say race ready, we mean it! Here's what the kart comes with:

  • Odenthal EZ-Set Motor Mount 5 Degree Mount(I-30 Spacing)
  • KA 100 Engine Kit, w/Exhaust, Carburetor, Airbox, Battery, Copper Vibration Plate
  • Full Teflon Skid Plates
  • Alignment Prepared, Safety Tech Complete for racing (safety clips and tethers)


Select from several graphics options:

  • Factory CRG Graphics (Pictured)
  • Point Karting "Rising Sun" Graphics
  • Fully Custom - anything you want! (put in notes at check out)

Shipping & Seat Sizing

The KT 5 is available with the IMAF F6 fiberglass resin seat as standard. Additional IMAF seats are available on request, including the F6 Rombo Silver, or H7 models. For sizing of your seat, consult the seat sizing chart available here, or in the image gallery.

Purely as a reference as you begin to measure your own dimensions, an average adult male driver, height 6' 0", with waist 33-34 will fit a size 3 seat quite well.

For shipping of the KT 5 chassis, typically overland, LTL freight carrier is the ideal mode for timely and cost-effective kart shipments. Once ordered, typical shipment time is 5 days - 1.5 weeks depending on destination. Point has found that shipping directly to your nearest central shipping hub for a carrier is best, as this eliminates additional costs to the buyer, and is more reliable than a commercial or private residential delivery. However, either option is something we can do upon coordination with you!
